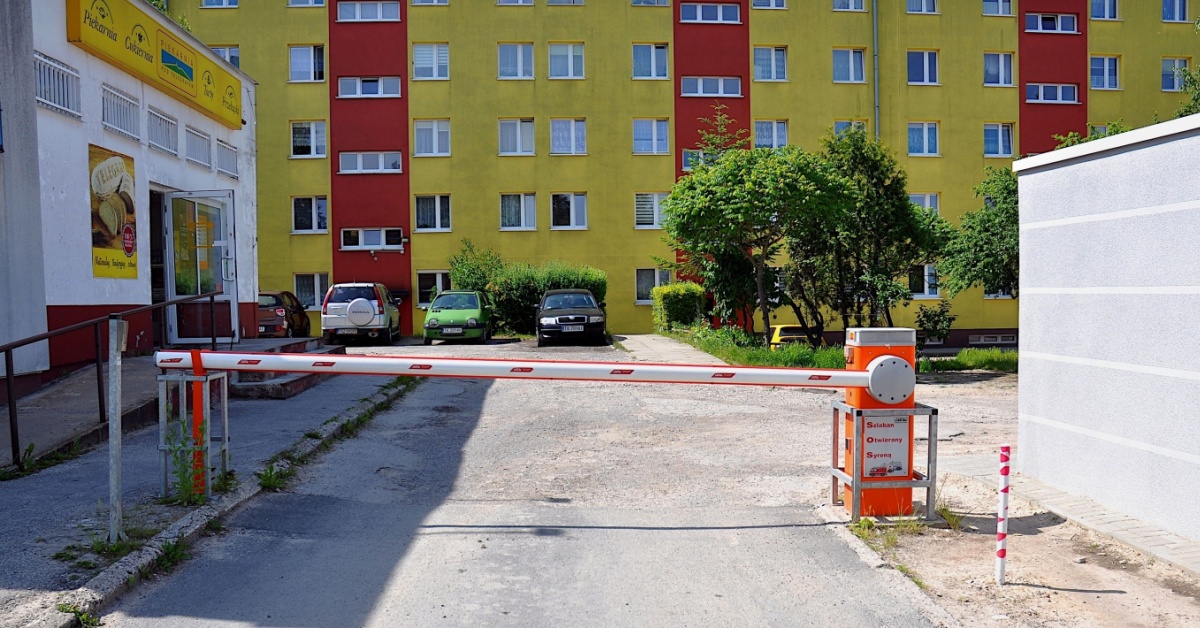

Boom barrier installation has become essential for Indian apartment complexes, helping prevent theft, vandalism, and unauthorized access while managing traffic efficiently. Complexes with over 100 apartments benefit greatly from automatic boom barrier with RFID installation technology, with installation costs ranging from ₹40,000 to ₹90,000.
With a lifespan of over 15 years, boom barriers offer excellent long-term value. Before installation, consider your property layout, traffic flow patterns, and security requirements to choose the right system.
Read Also: Apartment Security via Boom Barrier Integration
Planning to Install Your Boom Barrier
Successful boom barrier installation requires careful planning around site conditions, technical specifications, and integration needs. Start with a thorough site assessment covering traffic patterns, space constraints, and ground conditions to choose the right system.
Ensure a reliable power supply with backup options like solar energy or batteries. Always verify required permits and local regulations before installation to avoid any legal complications.
Prepare the following materials and supplies:
a) simple hand tools (drill, wrenches, screw drivers)
b) concrete supplies for the foundation
c) any special equipment recommended by the manufacturer.
Consider the following factors when determining what type of boom barrier you will buy:
- vehicle types and size that will be passing normally through the barrier
- security levels required,
- budget constraints,
- ease of installation and maintenance,
- suitable for weather conditions in India,
- seamless liaison with access control systems like RFID readers, etc.
Boom barriers with arm lengths of 2-8 meters and open/close times of 2-8 seconds work best for apartment complexes. Choose a system that integrates with surveillance cameras and access control, and opt for a reputable manufacturer using durable materials like steel or aluminum for long-term reliability.
High-traffic areas require faster, more durable systems. Proper planning and a solid foundation ensure smooth installation and efficient operation for years to come.
Read Also: Integrated Boom Barrier Systems for Smart Visitor Control
Pre-Installation Planning Checklist
A solid pre-installation plan is essential for a smooth boom barrier setup. Assess the site for traffic flow, space constraints, and ground conditions, ensure a reliable power supply with backup options like solar or batteries, and obtain all required local permits before starting installation.
The core tools and equipment needed:
- Marking and measuring tools: Marking pen/pencil, chalk, and measuring tape
- Digging and foundation tools: Spade, pick, and spirit-level
- Cutting and drilling equipment: Angle-grinder, electric drill with masonry bits (14mm for M12 chemical anchors; 20mm for M12 rawlbolts)
- Mechanical tools: 13mm spanner, two 17mm spanners, ¼” & ½” ratchet spanners, 19mm socket (for 3m barrier spring tensioning), 24mm socket (for 4.5m and 6m barrier spring tensioning)
- Specialized tools: Extended length T30 TORX bit with extension for ¼” ratchet, 8mm Allen key, crimping tool, self-locking pliers, and long-nose pliers
| Tools Category | Tools Included |
|---|---|
| Marking and Measuring Tools | Marking pen/pencil, chalk, measuring tape |
| Digging and Foundation Tools | Spade, pick, spirit-level |
| Cutting and Drilling Equipment | Angle-grinder, electric drill with masonry bits (14mm for M12 chemical anchors; 20mm for M12 rawlbolts) |
| Mechanical Tools | 13mm spanner, two 17mm spanners, ¼” & ½” ratchet spanners, 19mm socket (for 3m barrier spring tensioning), 24mm socket (for 4.5m and 6m barrier spring tensioning) |
| Specialized Tools | Extended length T30 TORX bit with extension for ¼” ratchet, 8mm Allen key, crimping tool, self-locking pliers, long-nose pliers |
The foundation area needs preparation based on Boom Barrier Installation Manual recommendations. Power cable conduits need installation, and channels for inductive loops should be ready if your system needs them.
Test-fitting the barrier arm before final installation helps ensure proper angle adjustment on both sides. This step prevents alignment problems that could affect operation later.
The consumables you’ll need:
- Power cables (1.5mm² three-core LNE cable)
- Multi-strand cables for accessories
- Appropriate conduit
- M12 rawlbolts or chemical anchors
- Cable ties and necessary fasteners
Choosing the right boom barrier system is crucial as it directly impacts your apartment complex's security, traffic flow, and daily operations. Always follow a Boom Barrier Installation Guide to ensure every step aligns with best practices and manufacturer instructions.
Choose a System That Fits Your Needs.
Barrier Types:
- Manual Boom Barriers: Affordable and operated by staff scientists.
- Automatic Boom Barriers: Sensor or access controlled, for the medium or high degree of security.
- RFID Boom Barriers: Access by RFID tags, with no need to roll down a window. These barriers are listed as an ideal option for apartments.
- Hydraulic Boom Barriers: These barriers are built to last, and because they move fast, they are great for high traffic areas.
- Electromechanical Boom Barriers: Electric motor-driven, as reliable as either of these methods.
Features to Consider
- Design strength and weather resistance
- Speed of operation ( between 2-8 seconds is optimal)
- Integration to RFID or biometric readers
- Safety features such as obstacle detection and automatic closure
- Arm lengths of 2-8m
Always consider the Boom Barrier Installation Specification provided by the manufacturer if you plan on installing a boom barrier!
Read Also: Automatic Boom Barrier Gate for Housing Societies in India
Step by Step: Boom Barrier Installation Guide
Here's a general installation guide for a boom barrier (automatic gate arm). Exact steps vary by manufacturer, so always check the specific product manual too.
1. Site Survey & Planning
- Measure the road/lane width to determine barrier arm length (standard arms cover 3-6 m; longer spans need support or articulated arms).
- Check for underground utilities (cables, pipes) before digging.
- Identify power source location and whether you need a dedicated circuit or backup battery.
2. Foundation Preparation
- Mark the mounting position, typically set back from the traffic path so the swinging arm doesn't strike vehicles.
- Dig a foundation pit per the manufacturer's spec (commonly around 500 x 500 x 700 mm, but confirm from the datasheet).
- Place anchor bolts/cage in the pit, ensuring correct spacing to match the barrier's base plate.
- Pour concrete and let it cure fully (usually 48 - 72 hours minimum) before mounting.
3. Mounting the Barrier Cabinet
- Once the foundation cures, position the barrier housing over the anchor bolts.
- Use a level to ensure the unit is perfectly vertical/horizontal, even small misalignment affects arm balance.
- Tighten mounting nuts evenly and securely.
4. Electrical Wiring
- Run conduit from the power source to the barrier location (underground conduit is standard).
- Connect mains power to the control board following the wiring diagram with respect to voltage ratings.
- Install a dedicated circuit breaker/isolator for safety.
- Ground the unit properly.
5. Installing the Boom Arm
- Attach the arm to the drive shaft/hub as specified (bolts, clamps, etc.).
- Attach any support post (for long arms) and align it with the arm's resting position.
- Balance the arm using counterweights or the spring-tension mechanism, if included.
6. Control Board Configuration
- Set opening/closing speed, auto-close timer, and obstacle-detection sensitivity via the control panel or DIP switches.
- Configure limit switches or encoder settings so the arm stops precisely at open and closed positions.
7. Connecting Accessories
- Wire up loop detectors, photocells/safety beams, remote receivers, card readers, or traffic lights as needed.
- Test each accessory individually before full integration.
8. Testing & Calibration
- Run manual open/close cycles first (many barriers have a manual release lever/key for this).
- Test automatic operation, checking smoothness, speed, and stopping position.
- Test safety features: obstacle detection, photocell interruption, emergency manual release.
9. Final Safety Checks
- Verify grounding and electrical connections are secure and weatherproofed.
- Check that reflective strips/warning lights on the arm are visible.
- Confirm emergency manual operation works in case of power failure.
10. Handover & Maintenance Plan
- Demonstrate operation to the end user/operator.
- Provide a maintenance schedule (lubrication, bolt checks, sensor cleaning) typically every 3-6 months.
Installation and Maintenance Fundamentals
Installing a boom barrier system takes skill and experience. The life of your barrier begins with a proper installation, and it should be maintained on a regular basis to ensure continued service.
A secure concrete foundation, power supply with proper grounding, and accurate and calibrated timing devices define proper installation as described in any reputable Boom Barrier Installation Manual.
Recommended accessories:
- Multi-door access controller
- UHF RFID Readers (1-5 & 1-10 meters range)
- RFID Tags
- Photocell Sensors
- Remote control (25 meters range)
- Manual push button
Use the Boom Barrier Installation Manual to correctly install and configure the accessories.
Maintenance Tips:
| Frequency | Maintenance Tasks |
|---|---|
| Monthly | • Lubricate any moving parts • Test safety features and safety sensors • Inspect the barrier arm for damage |
| Quarterly | • Clean components • Inspect for rust and tightness of connections |
| Annually | • Run system diagnostics • Perform firmware upgrades• Recalibrate the system |
Proper installation of any boom barrier system per a Boom Barrier Installation Manual, usually performed by a professional, will deliver a well-operating system; preventing time-consuming repairs and contributing to the ongoing health of the overall system.
